ISC Compact Rigging Pulley
Payment details
Spread the payments with Klarna

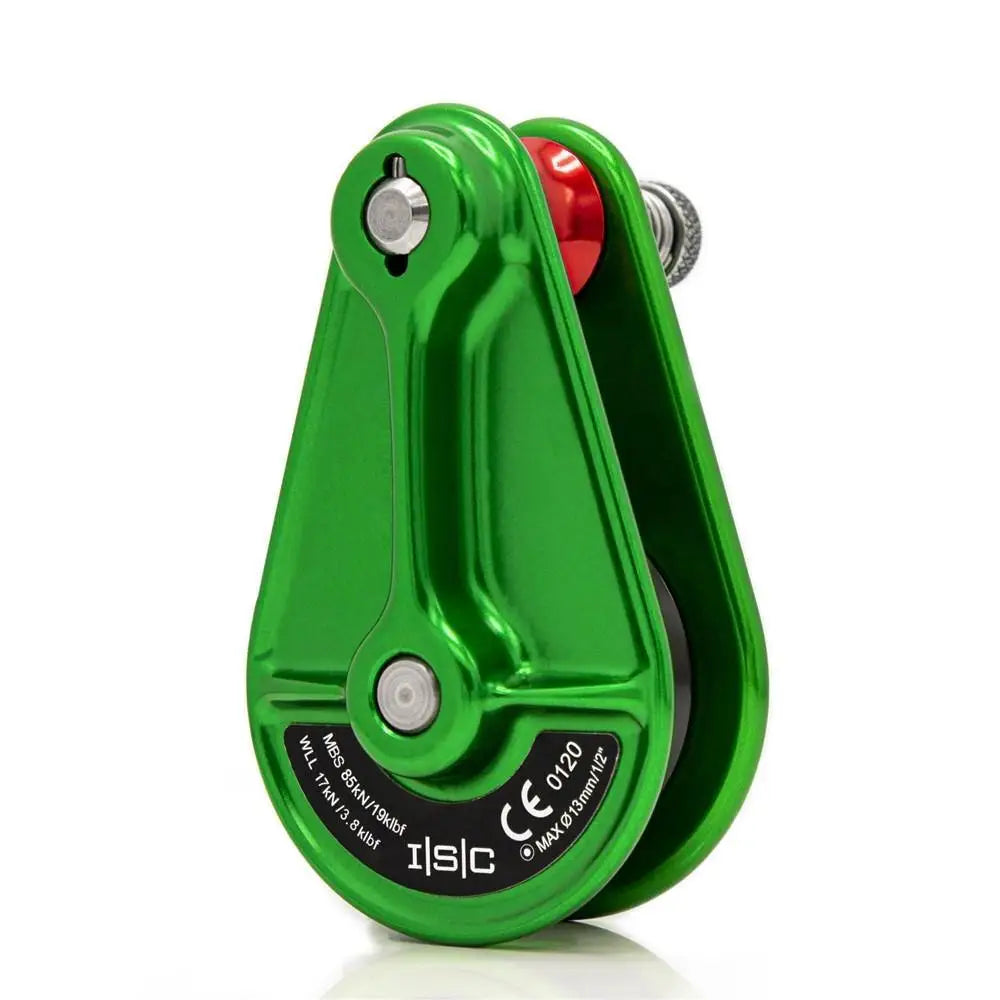

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85 kN (19000 lbf) MBS and a WLL of 17kN (3800 lbf).
The Pulley plates are made from hot forged Aluminium and it is this manufacturing process that allows such a compact pulley to boast such great strength and dynamic load-bearing capacity.

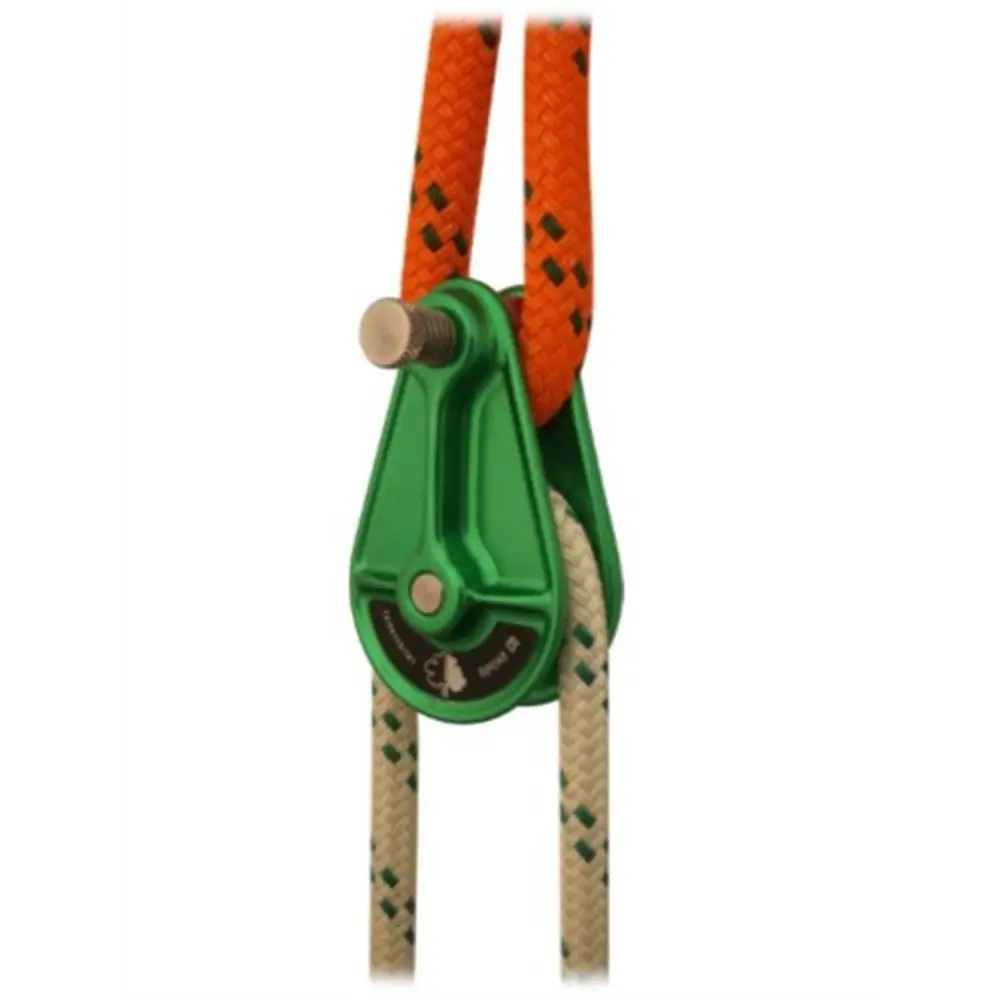

- Working Line (Grey Sheave):
- 13mm (1/2") - 38kN (8500 lbf)
- Topping Strop (Red Sheave):
- 16mm (5/8") - 74kN (16650 lbf)

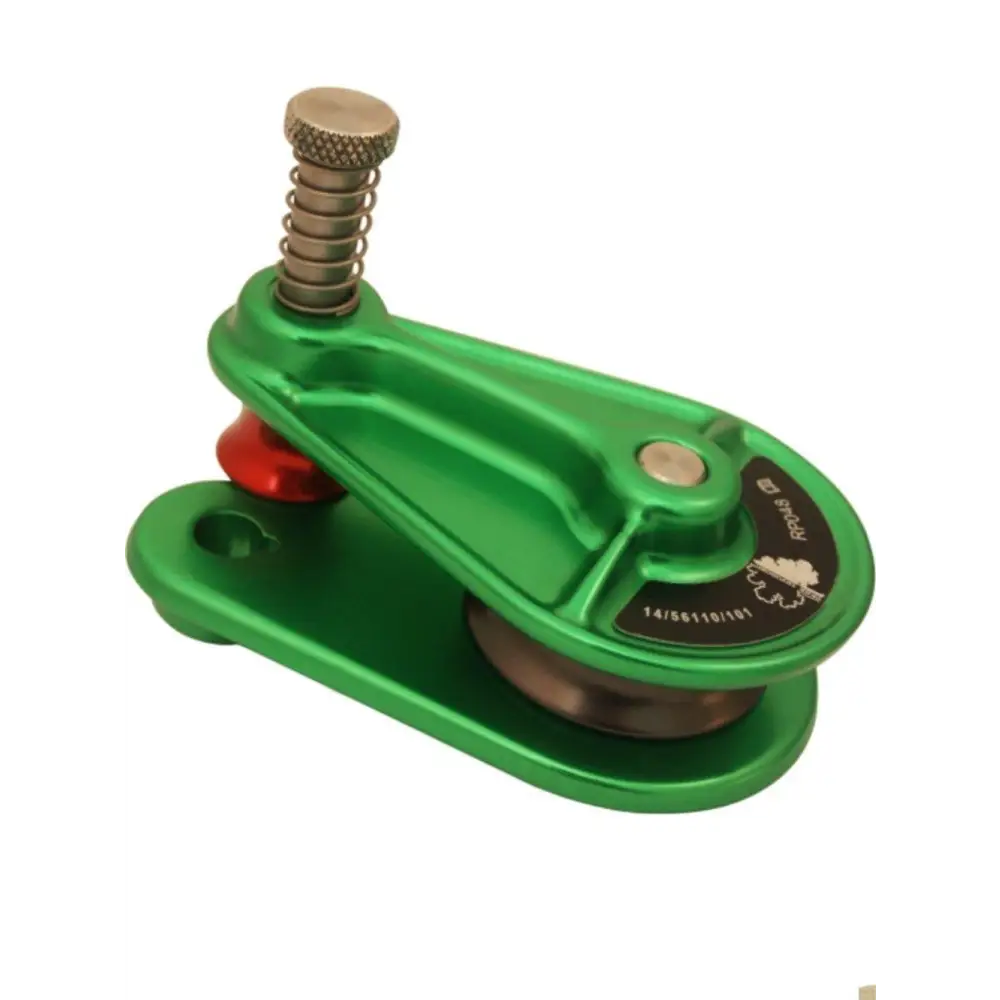

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.
Technical Information
(MBS) Minimum Breaking Strength (kN)85
(MBS) Minimum Breaking Strength (lbf)19000
Pulley wheel colour grey
Anchor wheel coloured
Wheel materialAluminium
Body finish Anodized
ColourGreen/grey
Weight (grams)490
Weight (ounces)16
Height (mm)125
Height (inches)5
Width (mm)76
Width (inches)3
Approved Standards
CE Approved
Notes
Individually Serial Numbered
