DMM Revolver Rig - 3 Way DMM
  • SKU: A5871CB
  • Availability: In stock Many in stock Out of stock You can purchase this product but it's out of stock

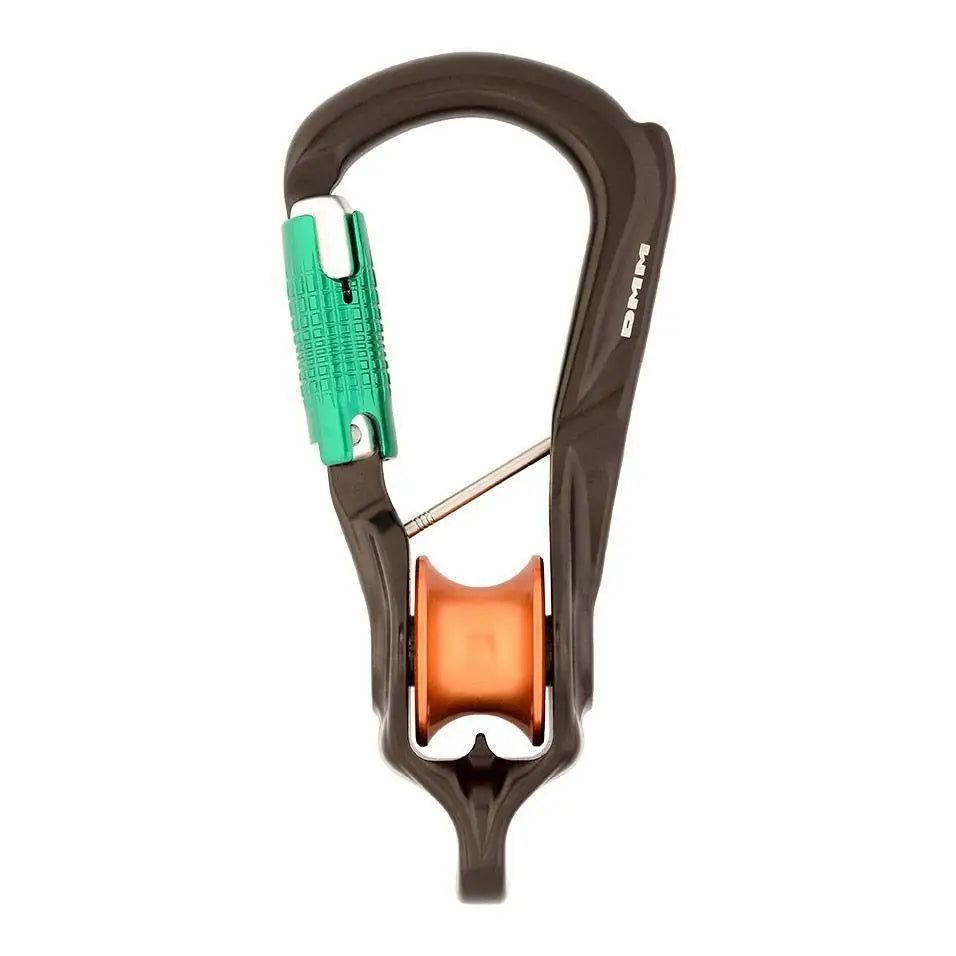

DMM Revolver Rig - 3 Way

Incl. VAT:


A connector with an integrated pulley sheave. It features a high-efficiency roller bearing sheave(s), threaded removable captive bar and a full-strength textile friendly becket. The uniquely profiled spine and captive bar aid in maintaining correct orientation. The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.


  • High-efficiency roller bearings
  • Removable captive bar
  • iD Optional
  • Keylock nose
  • Large tread diameter


  • MBS - 25kN
  • WLL - 5kN
  • Dimensions - 76 x 160mm
  • Weight - 203g
  • Rope Dia - 7 - 13mm
  • EN12278:2007, EN362:2004
