Excl. VAT:
£524.00Incl. VAT:

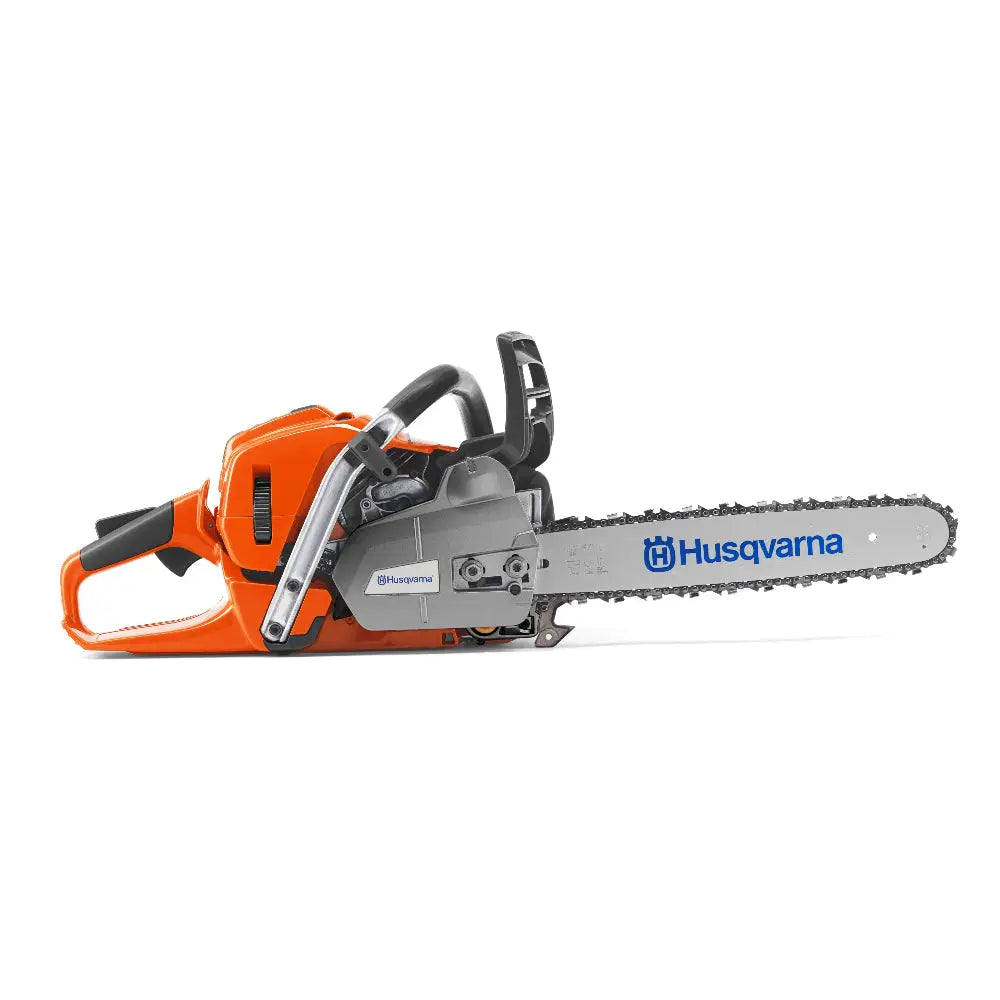

£628.80The best 60cc chainsaw ever produced, unrivalled by any other brand. Revboost, autotune, air injection, smart start plus many other features make the 560XP a must have chainsaw for any professional forester or arborist.
Specifications
| Engine specification | |
|---|---|
| Cylinder displacement | 59.8 cm³ / 3.65 cu.inch |
| Power output | 3.5 kW |
| Idling speed | 2800 rpm |
| Maximum power speed | 9600 rpm |
| Cylinder bore | 46 mm / 1.81 inch |
| Cylinder stroke | 36 mm / 1.42 inch |
| Spark plug | NGK CMR6H |
| Electrode gap | 0.5 mm / 0.02 " |
| Carburettor model name | C1M-X5203 |
| Fuel tank volume | 0.65 lit / 1.37 US pint |
| Oil tank volume | 0.33 lit / 0.7 US pint |
| Oil pump type | Adjustable flow |
| Oil pump capacity | 6-15 ml/min |
| Air filter type | Nylon 44µ |
| Torque, max. | 3.65 Nm/8100 rpm |
| Fuel consumption | 494 g/kWh |
| Cutting equipment | |
| Chain pitch | .325" |
| Recommended bar length, min-max | 33-51 cm / 13"-20" |
| Chain speed at max power | 21.3 m/s / 69.9 fts |
| Bar mount | Small |
| Emission, vibration & noise data | |
| Equivalent vibration level (ahv , eq) front / rear handle | 2.7/3.2 m/s² |
| Sound pressure level at operators ear | 106 dB(A) |
| Sound power level, guaranteed (LWA) | 118 dB(A) |
| Emission data EPA | |
| Exhaust emissions (HC average) | 56 g/kWh |
| Exhaust emissions (CO average) | 241 g/kWh |
| Exhaust emissions (NOx average) | 4.8 g/kWh |
| Exhaust emissions (CO₂ average) | 802 g/kWh |
| Overall dimensions | |
| Weight (excl. cutting equipment) | 5.6 kg / 12.35 lbs |
|
X-Torq®
Deliver lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
|
 |
AutoTune
AutoTune gives optimal engine performance throughout automatic engine setting. No time spent on carburettor adjustments. It compensates for different fuels, altitude, humidity, temperature and clogged air filter.
|
 |
RevBoost™
Rapid acceleration and higher chain speed for best limbing performance.
|
 |

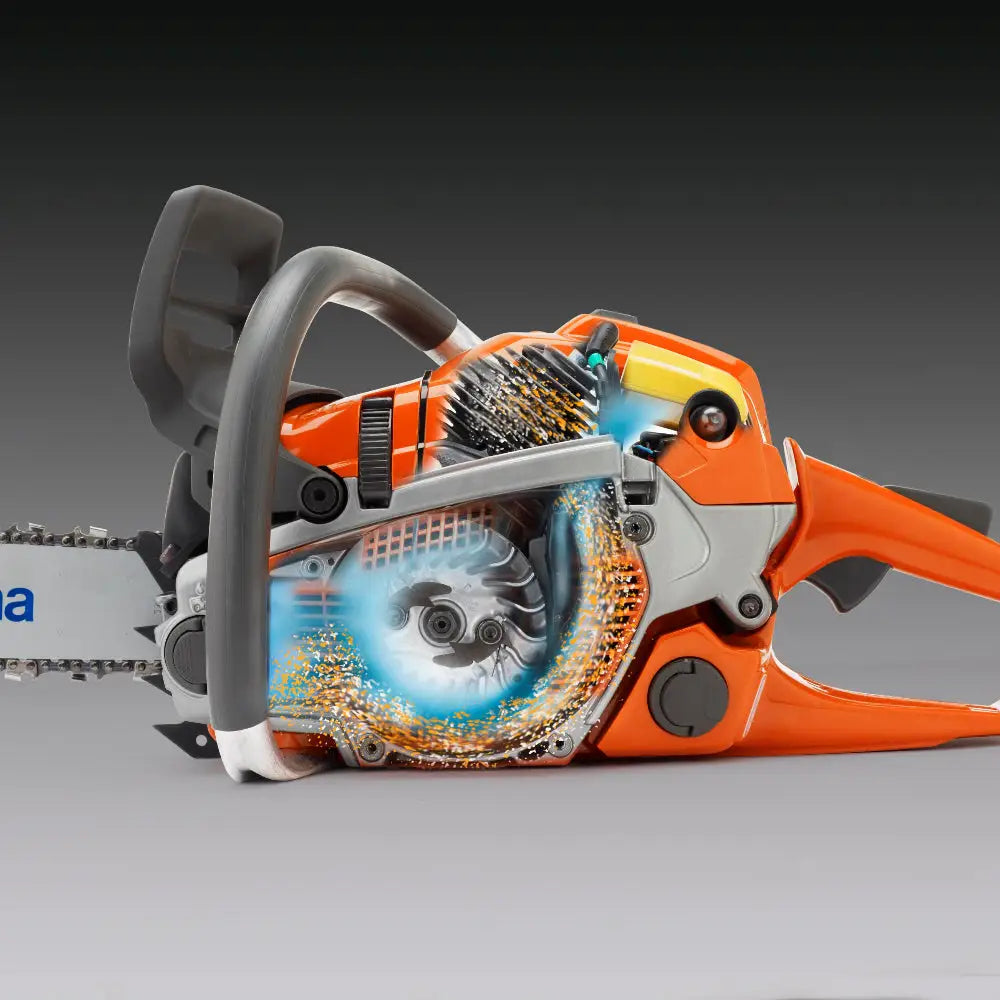

Air Injection
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.
|
 |
Flip-up tank cap
The flip-up tank cap is easy to open and close when refueling.
|
 |
LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user's arms and hands.
|
|
Adjustable oil pump
Adjustable oil pump makes it easy to set the chain lubrication according to your needs.
|
 |
Quick-release air filter
Facilitates cleaning and replacement of the air filter.
|
Combined choke/stop control allow for easier starting and reduce the risk of engine flooding.
Side-mounted chain tensioner makes chain adjustment quick and easy.
Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
Quick release cover saves time when cleaning or changing spark plug.
Snap-lock cylinder cover saves time when changing spark plugs and cleaning.
Forged three-piece crankshaft for maximum durability for the toughest applications.
The engine and starter have been designed so the machine starts quickly with minimum effort. Resistance in the starter cord is reduced by up to 40%.
Low, slender saw body makes the chainsaw easy and convenient to handle in any situation.
Distinct, coloured felling marks for better felling precision.
Transparent fuel indicator makes it easy to check fuel level.
Fuel pump designed for easy starting.
The retaining function prevents loosing the bar nuts.
Effective inertia-activated chain brake.
