Excellent

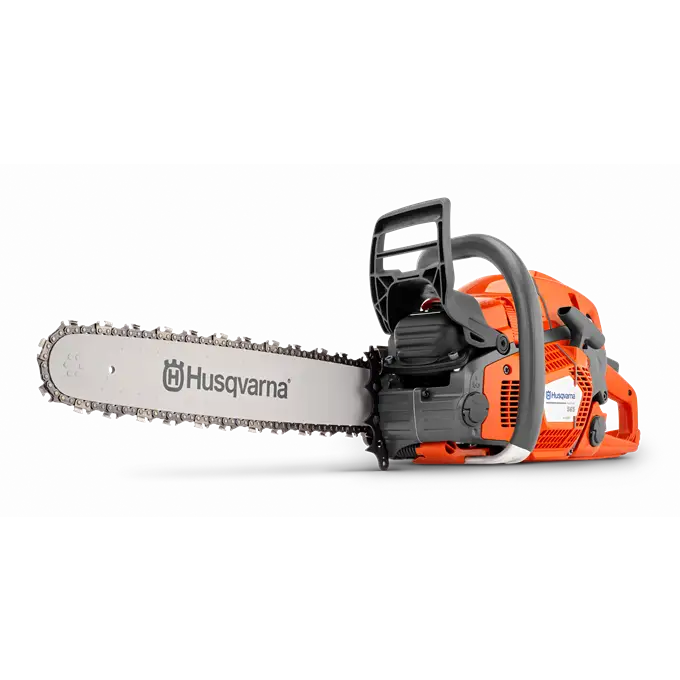

performance from the newly designed 565 thanks to some new features.
Available with bar lengths ranging from 15" to 28" State of the art filtration means great performance and easy operation. The new autotune system ensures peak engine power by adjusting the air/fuel mixture ten times quicker than previous versions.
Cutting equipment information
- Chain type - H42
- Pitch - 3/8"
- Gauge - 1.5mm/0.058"
- File size - 7/32"/5.5mm
- Min bar length - 15"
- Max bar length - 28"
- Bar mount - Large
- Rim sprocket - 7 tooth
Specifications
- Weight (exl bar and chain) - 6.5kg
- Engine capacity - 70.6cc
- Power output - 3.7kW
- Available bar length - 15"-28"
- Fuel tank volume - 0.7 litres
- Oil tank volume - .35 litres
- Sound pressure level at operator's ear, dB(A) - 105
- Equivalent vibration level (ahv, eq) front handle - 5.2 m/s²
Better chip ejection avoids clogging
The clutch cover is designed to optimise rapid, safe saw chip ejection. Prevents clogging, even when cutting long fibre wood
Air Injection filters 98% of incoming dust
Give you full working days with maintained performance and less wear on the engine
10 times quicker air/fuel mix adjustment#
AutoTune™ ensures a correctly tuned engine setting and optimised engine performance in all conditions.
