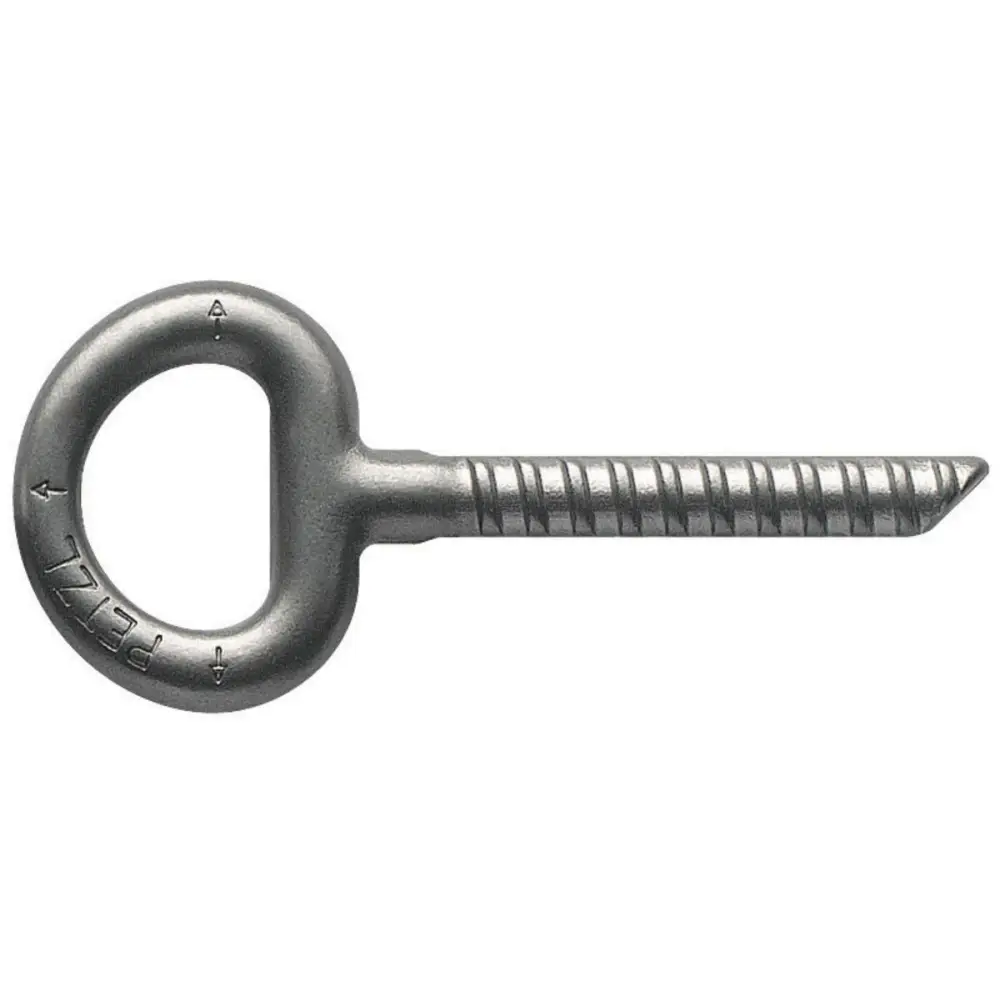

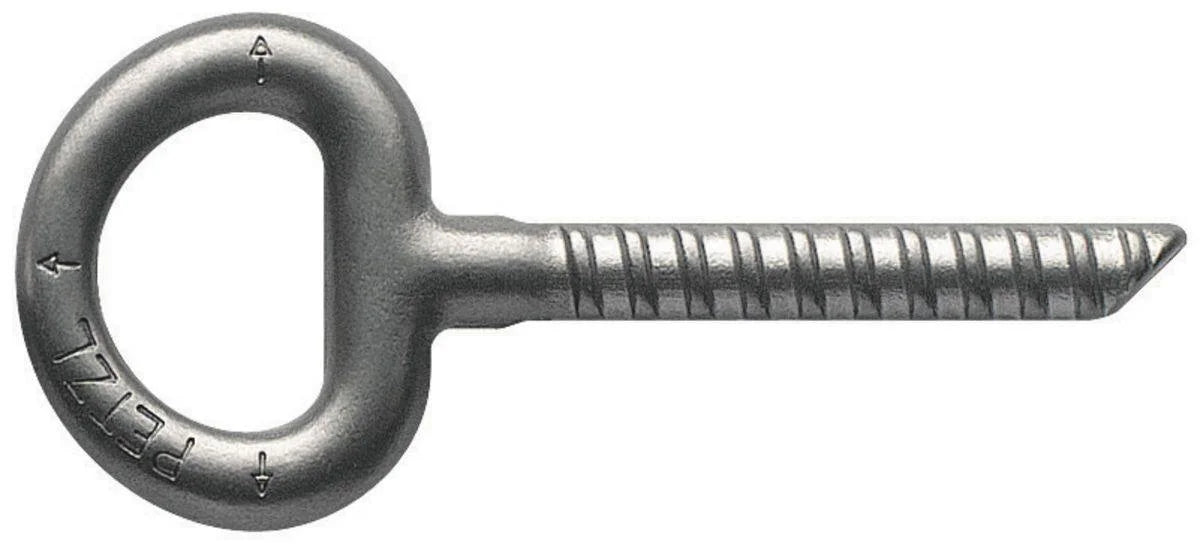

Petzl Collinox Bolt Anchor

A forged stainless steel glue in bolt for situations where the anchor needs to remain permanent.

Size

• 10 x 70 mm

Specifications

• Material(s): forged stainless steel


• Certification(s): EN 959


• SKUs- P55


• Diameter - 10 mm


• Weight - 95 g


• Length - 7 cm


• Drilling Depth - 7-7,5 cm


• Drilling diameter - 12 mm


• Type of installation - P56 glue (or other glues approved by Petzl)


• Suggested drying time - 40 min -> 10 h


• Resistance to cutting on concrete 50 MPa 25 kN

Pull-out strength in concrete 50 MPa 15 kN

• Granite, gneiss > 80 MPa: preliminary testing recommended Hard limestone > 80 MPa: preliminary testing recommended


• Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended


• Soft rock (soft sandstone, limestone) lower than 45 MPa: preliminary testing required


• Very high quality concrete (work of art) > 50 MPa: preliminary testing recommended


• Medium quality concrete between 25 and 50 MPa: preliminary testing suggested


• Times are given for P56 glue (times may vary depending on the glue used and on the external environment)


• Guarantee 3 years
