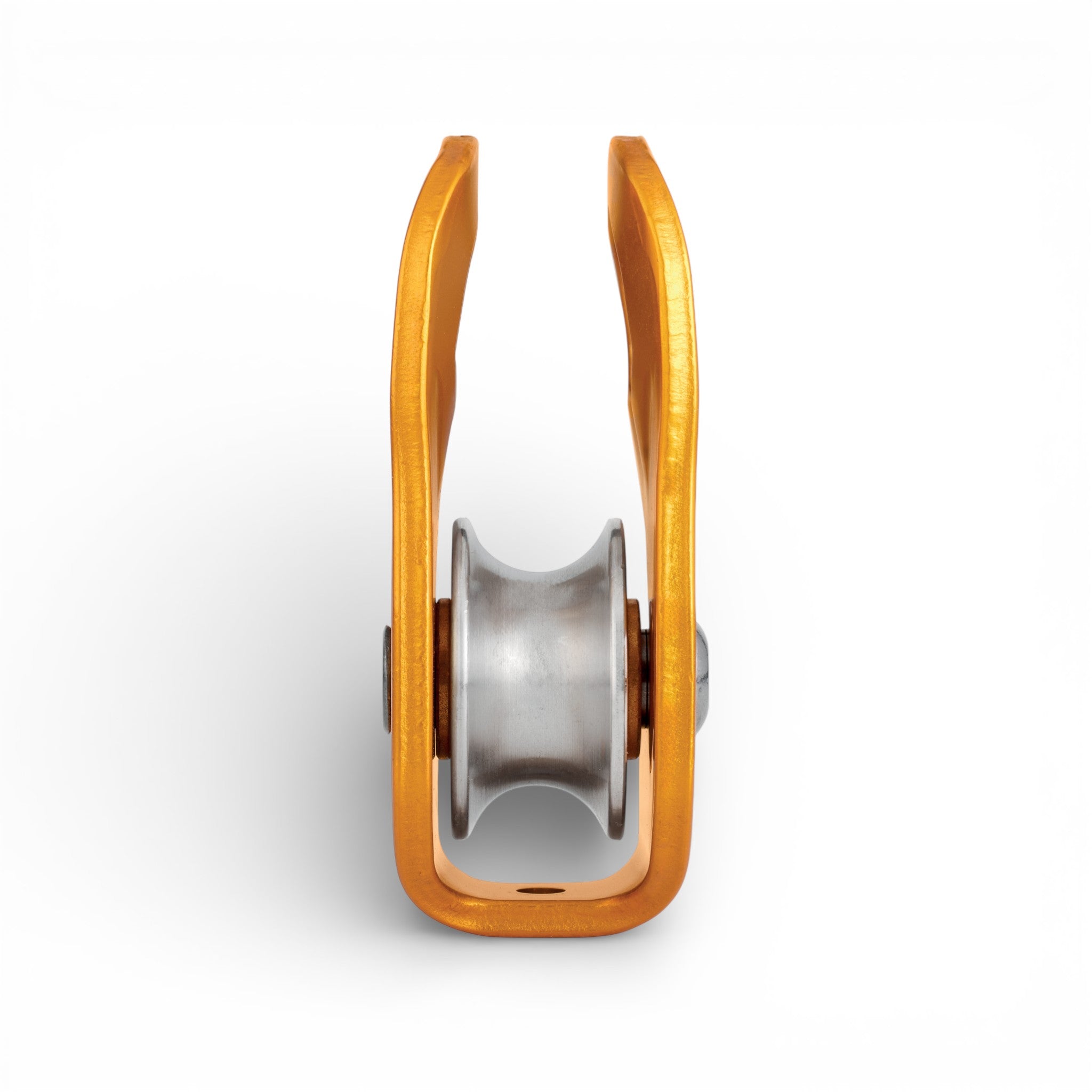

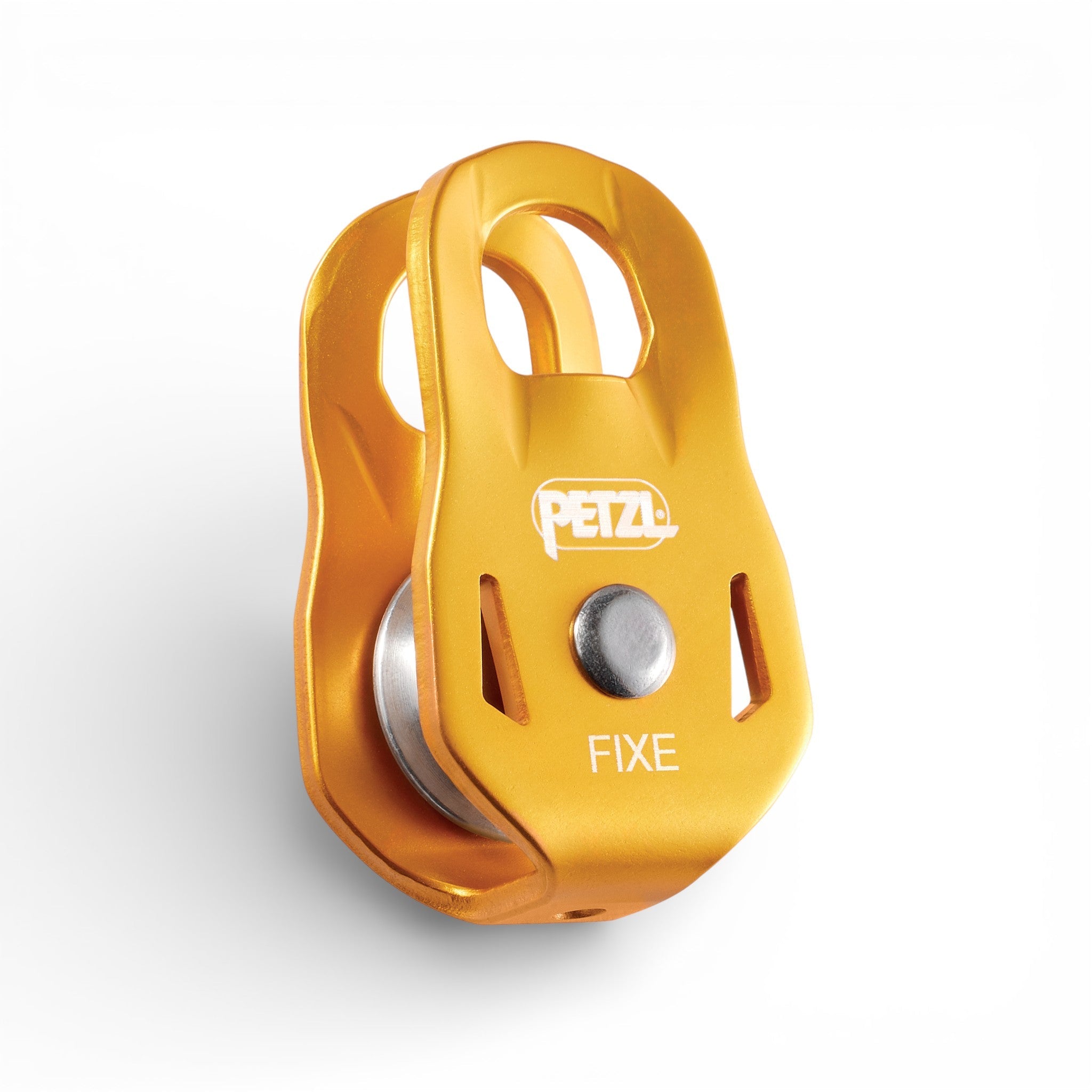

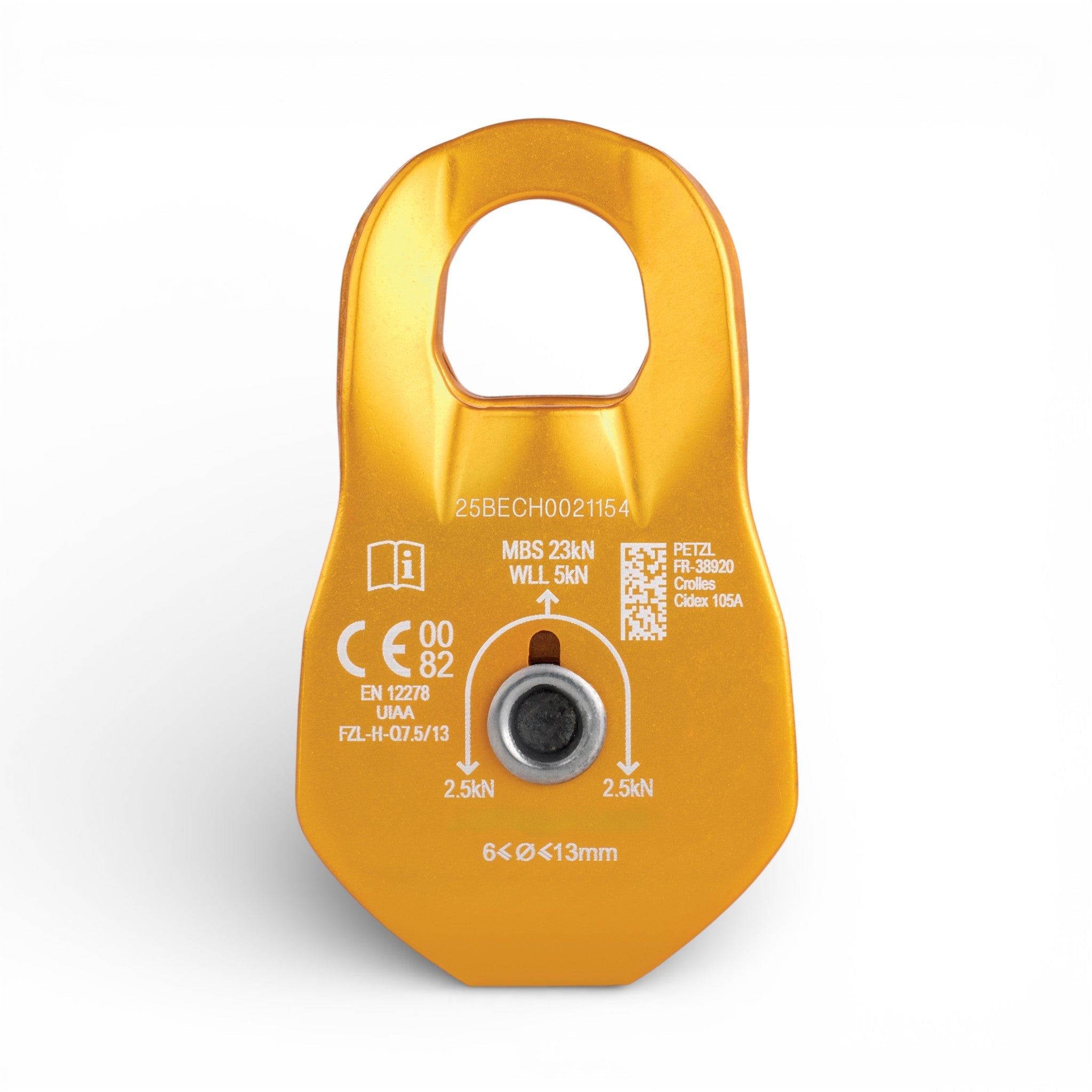

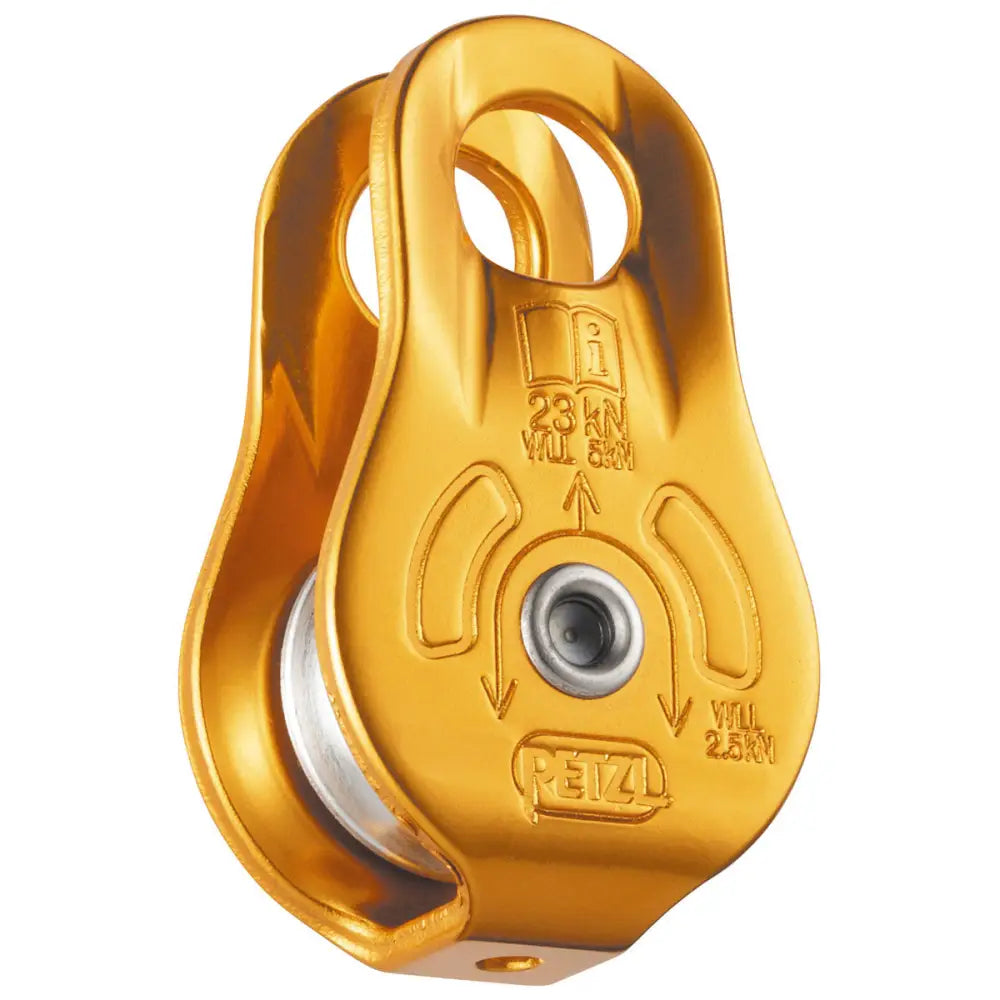

A Lightweight, compact pulley with fixed side plates allow quick installation and coupling with a rope clamp.
Designed for hauling systems and deviations. Sheave mounted on self-lubricating bushings for efficiency.
|Min. rope diameter||7 mm|
|Max. rope diameter||13 mm|
|Sheave type||self-lubricating bushings|
|Sheave diameter||21 mm|
|Working load||5 kN|
|Working load||on one rope strand: 2.5 kN|
|Breaking strength||23 kN|
