Rollclip Z is a pulley-carabiner with a gate opening on the non-pulley side to facilitate installation on anchors and devices. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system.
Features
Easier handling:-
- Sheave mounted on sealed ball bearings for excellent efficiency

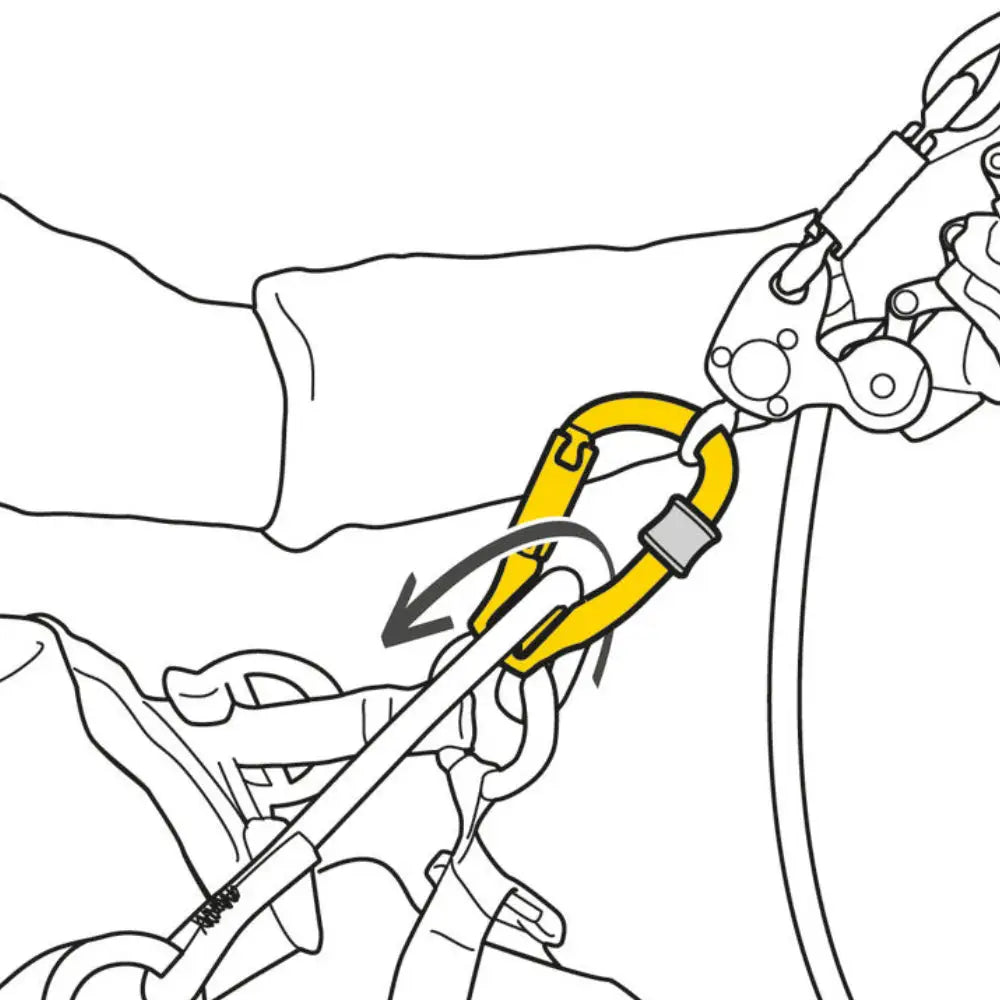

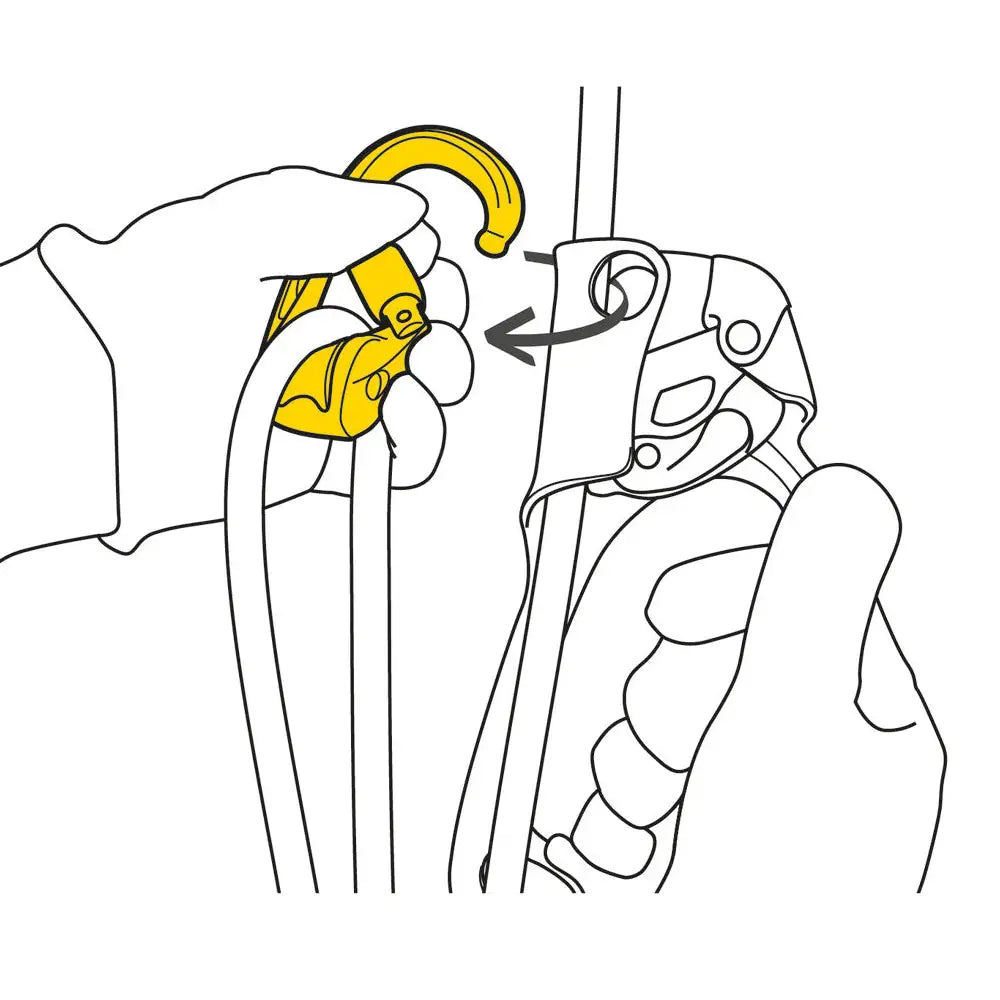

- Gate opening on the non-pulley side, to facilitate installation on devices
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
H cross-section of carabiner: -
- Ensures an improved strength-to-weight ratio
- Protects markings from abrasion

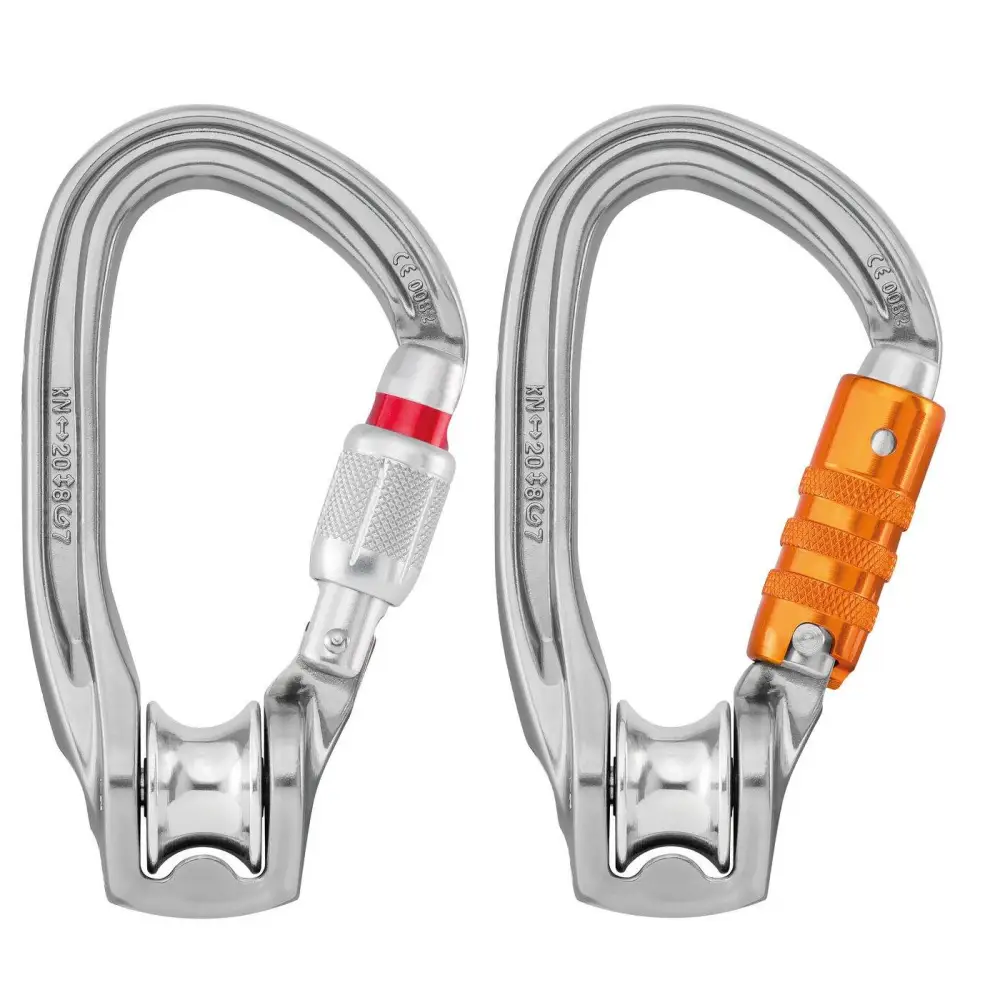

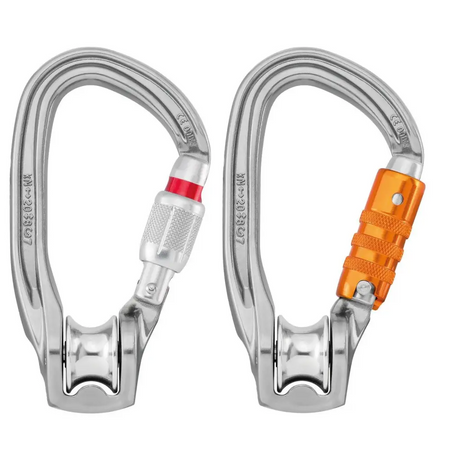

Two locking systems available: -

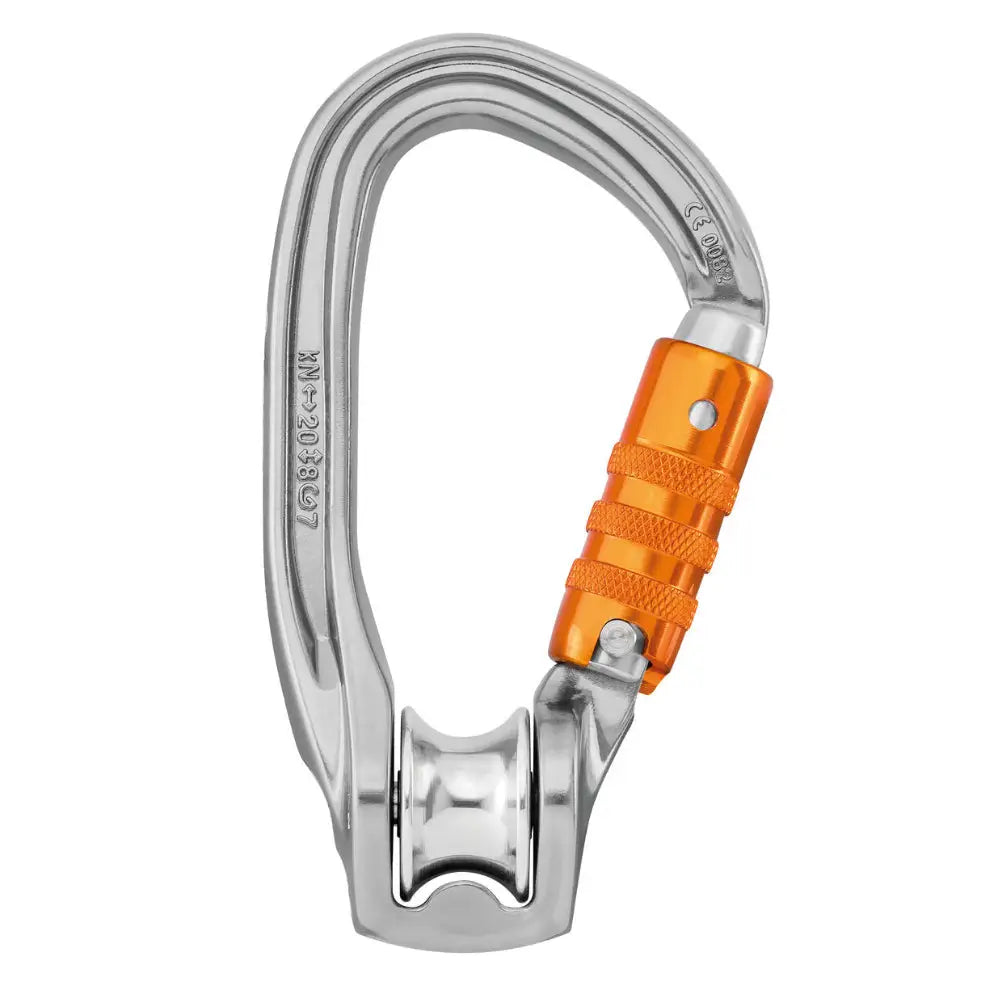

- TRIACT-LOCK: automatic locking with triple-action gate opening

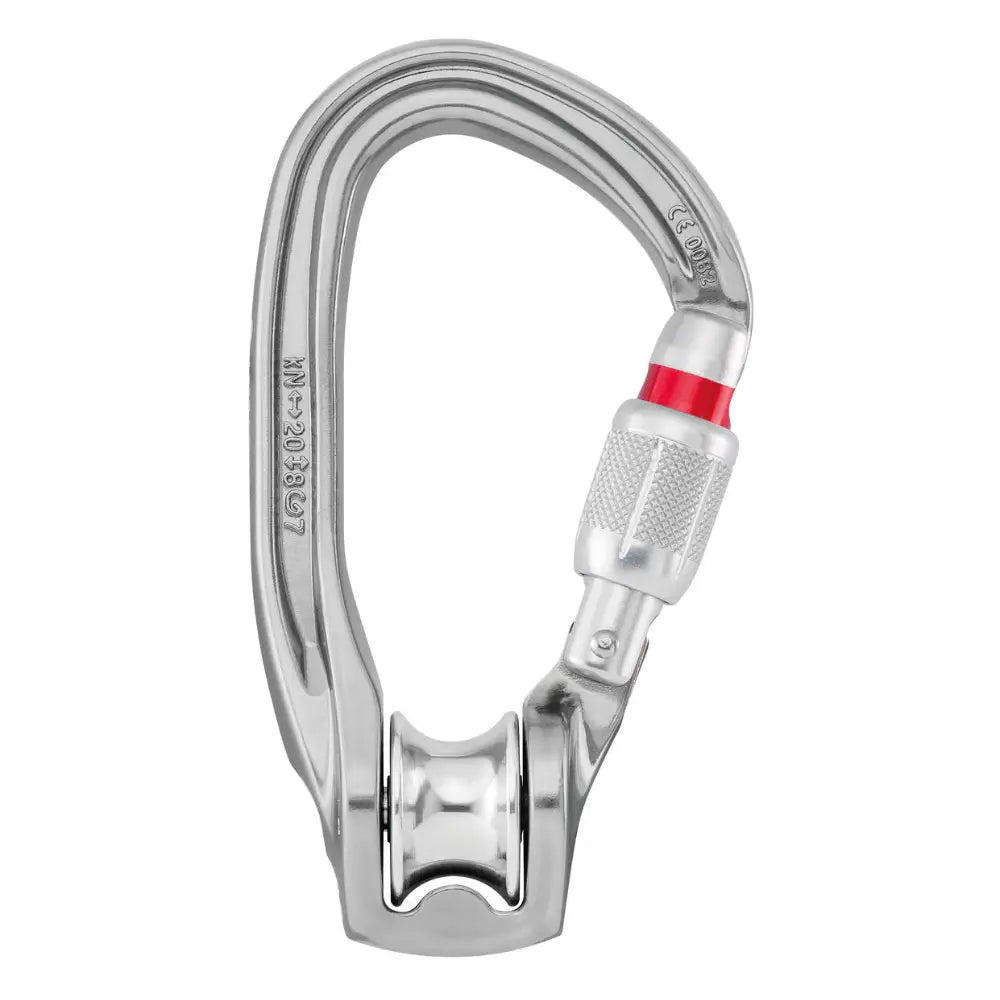

- SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked
Specifications
- Material(s): aluminium
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
- CE EN 362, EN 12278, EAC
