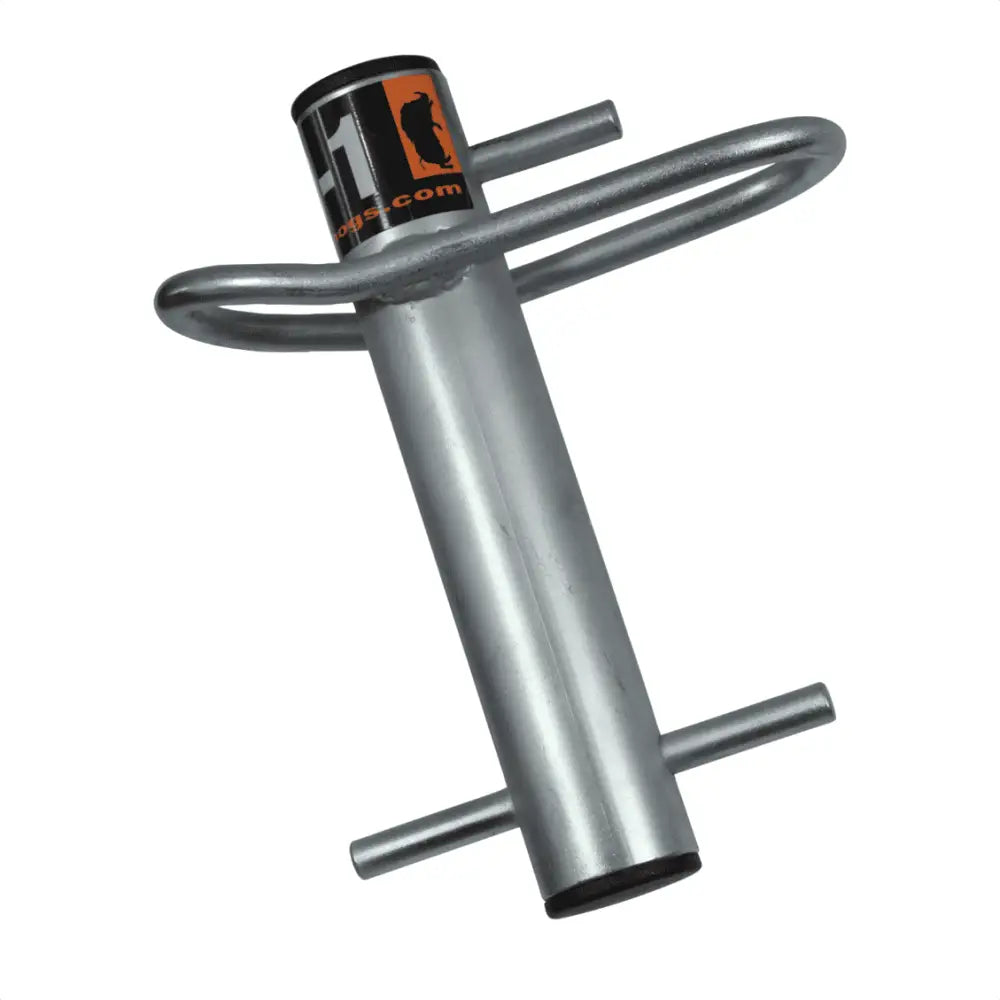

Treehog Flying Capstan Lowering Device

The capstan is a friction device installed into the rigging rope to create friction for lowering the cut branches slowly and safely to the ground. With a maximum working load of 6kN this device will undertake most rigging jobs.
The device needs to be tied against the trunk of the tree with a whoopie sling.

The SMALL version is for use with ropes of 10 - 12mm diameter.

The MEDIUM version is for use with ropes of 10 - 20mm diameter.

Specifications

• Small - 265mm x 230mm x 75mm
• Medium - 260mm x 285mm x 108mm
• MBS 30 kN (3 ton)
• WLL - 6kN (600KG)


Comes in a canvas storage bag.

Galvanised steel construction.
