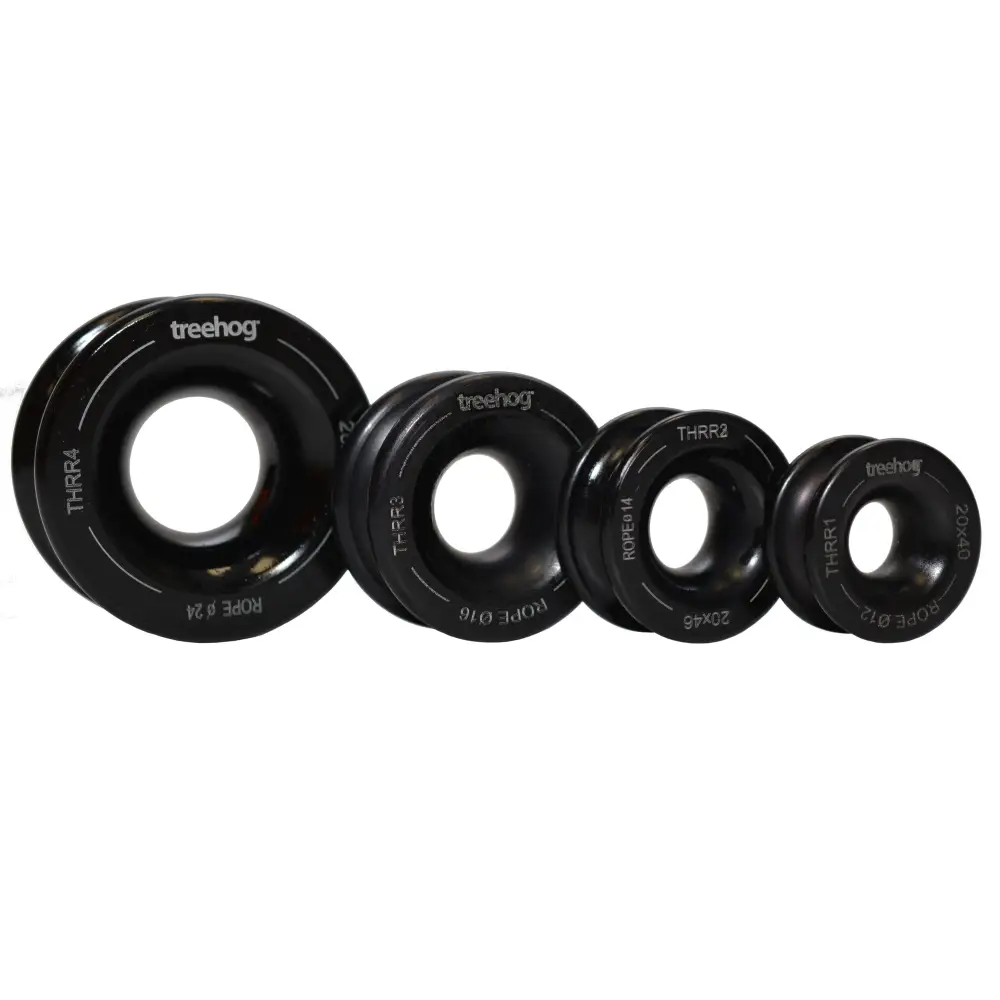

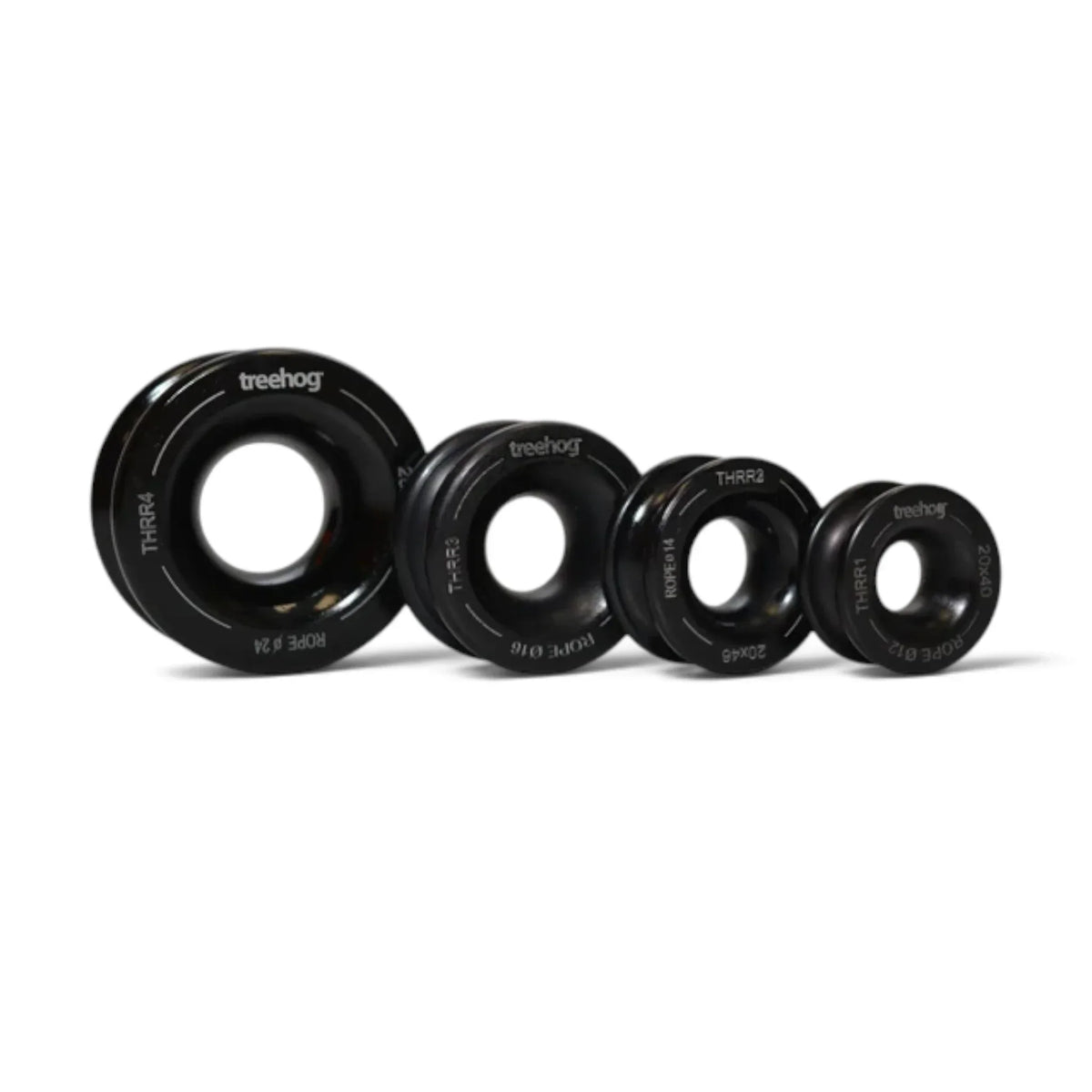

Treehog Low Friction Rigging Ring

£38.00 £43.20

DETAILS Introducing friction at the top of a rigging system is becoming more popular, and the Treehog THRR rigging rings are ideal for this purpose. Made from solid CNC aluminium and chemically finished with a black abrasion-resistant coating, the rigging rings can be spliced into a sling by the user. By being spliced into a rope, they can be used in many different configurations, one of the main ones being to create an alternative to the standard rigging block. By adding more rings into your rigging system, (as redirects on separate slings, or by using multiple rings in one sling) you can introduce more friction into your system. There are no mechanical parts to maintain, the rings are very simple to inspect for safety purposes and come in 4 different sizes (see below). The smaller THRR rigging rings can even be spliced into retrievable friction savers or other anchor point slings.

Diagram showing dimensions of THRR Rigging Rings

Code A: Outside Diameter B: Inside Diameter C: Rope Bend Diameter D: Groove Size
THRR1 40 20 25 12
THRR2 46 20 60 14
THRR3 54 20 36 16
THRR4 70 28 46 26
