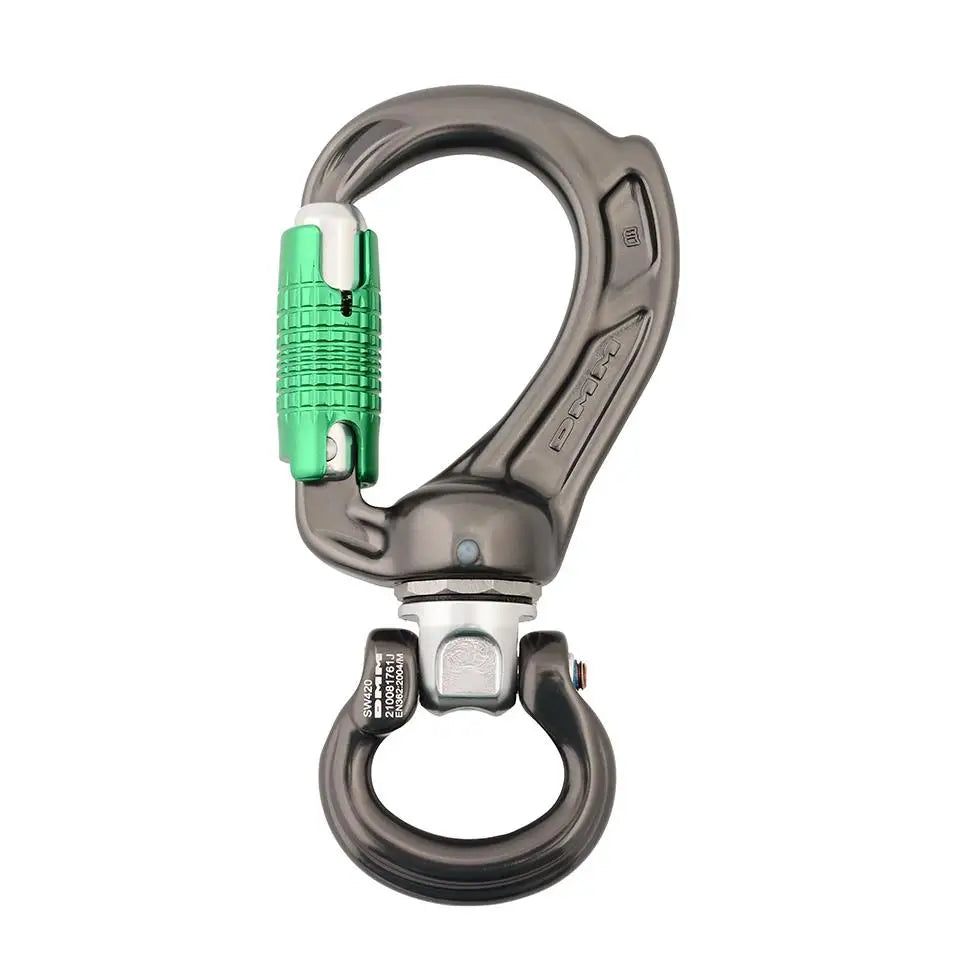

The Director Swivel Boss is a compact, swivelling termination connector designed to load in the strongest orientation. Ideal for lanyards, these lightweight, versatile and strong carabiners are easy to handle and can reduce the overall length of a system.
The Director Swivel Boss features a textile friendly, configurable eye, an extra short gate, a generous curve in the loading area and healthy gate openings. They can be retrofitted onto pre-stitched or swaged lanyard components or used in conjunction with DMM Linkits to form super short connectable systems. When used in conjunction with the DMM Director Yoke, it forms the ultimate swivelling, pivoting double connector.

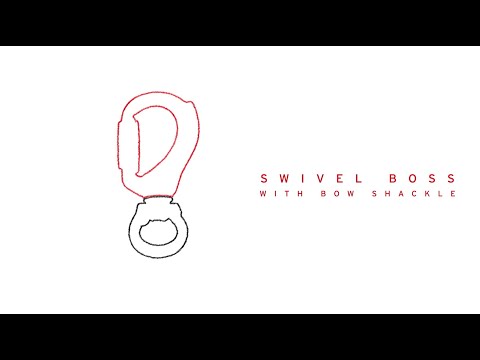

Choose between a D shape or a Bow shape spacer depending on attachment requirements.
- Major Axis - 26kN
- MBS (Gate open) - 9kN
- Gate Opening - 16mm
- Weight - 105g
- Dimensions - 64 x 130mm
EN12275:2013 A/T, EN362:2004 A/T
- Compact, lightweight and versatile
- Designed to ensure major axis loading
- ‘Rhino horn’ ensures devices remain in the loading area
- Incorporates DMM’s shortest gate
- Low overall length well suited to restricted height scenarios
- Patented features
- Hot forged and CNC machined
Locksafe & Locksafe ANSI
The classic triple-action, locking mechanism. The Locksafe is almost as simple to use as the Kwiklock, requiring just one extra push-up action of the barrel before the twist, but when locked gives even better protection from accidental opening. This is especially important in situations requiring complex, rope-running systems. A rope under tension may run transversely over other locking mechanisms exposing them to the risk of unlocking. The addition of the third required action dramatically reduces the likelihood of the same rope opening the Locksafe.Top Tip: Keep all Lock safes clean and properly maintained to increase longevity in use.
