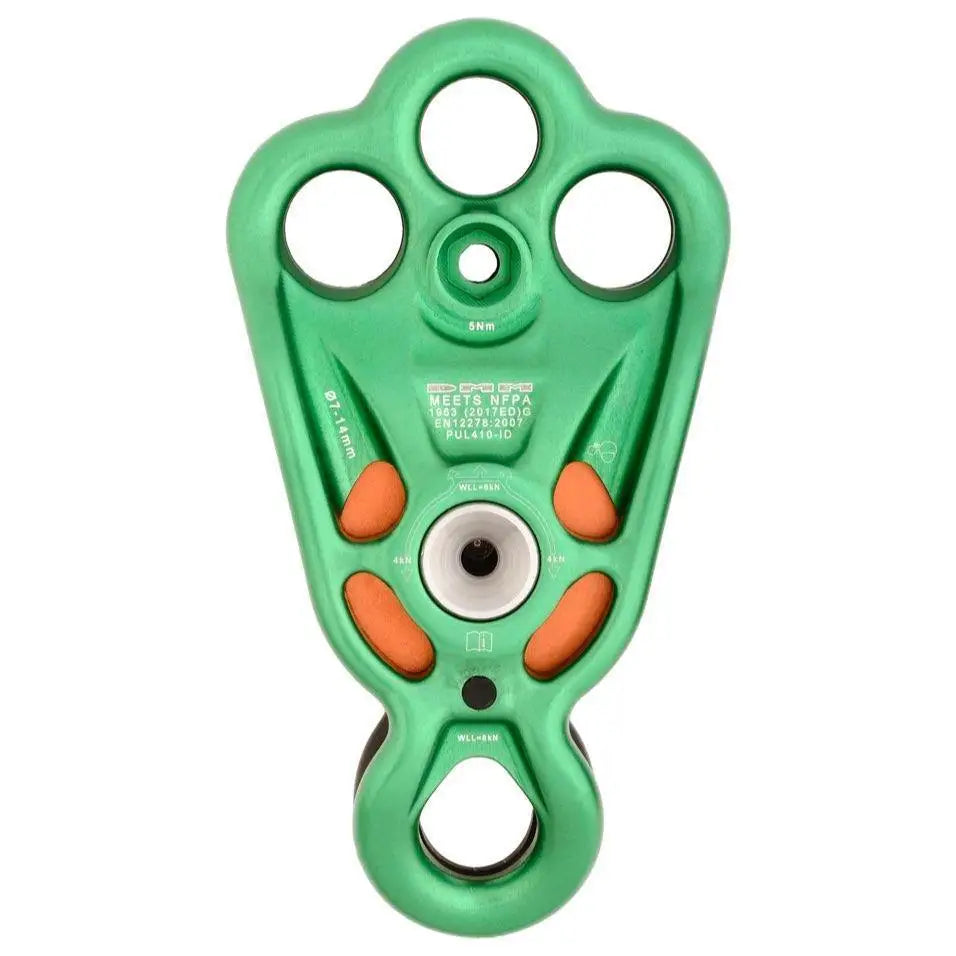

DMM Rigger Pulley Becket

An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM. The hot-forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication.
The Rigger Pulley Becket features a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity. Bolstered connection areas lead to high configured strengths.
The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding. The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high-efficiency roller bearings.

Features

• Ultra-high strength side pulley plates
• High-efficiency roller bearings
• Hollow axle for reduced weight
• Optional nut for locking side plates together
• Can be used as a rigging plate with or without the sheave

Specifications

• Rope range - 7 - 14mm
• Dimensions - 68 x 94mm
• Weight - 176g
• WLL - 8kN
• MBS - 40kN
• Conformance - EN12278:2007 NFPA 1983 (2017)G
