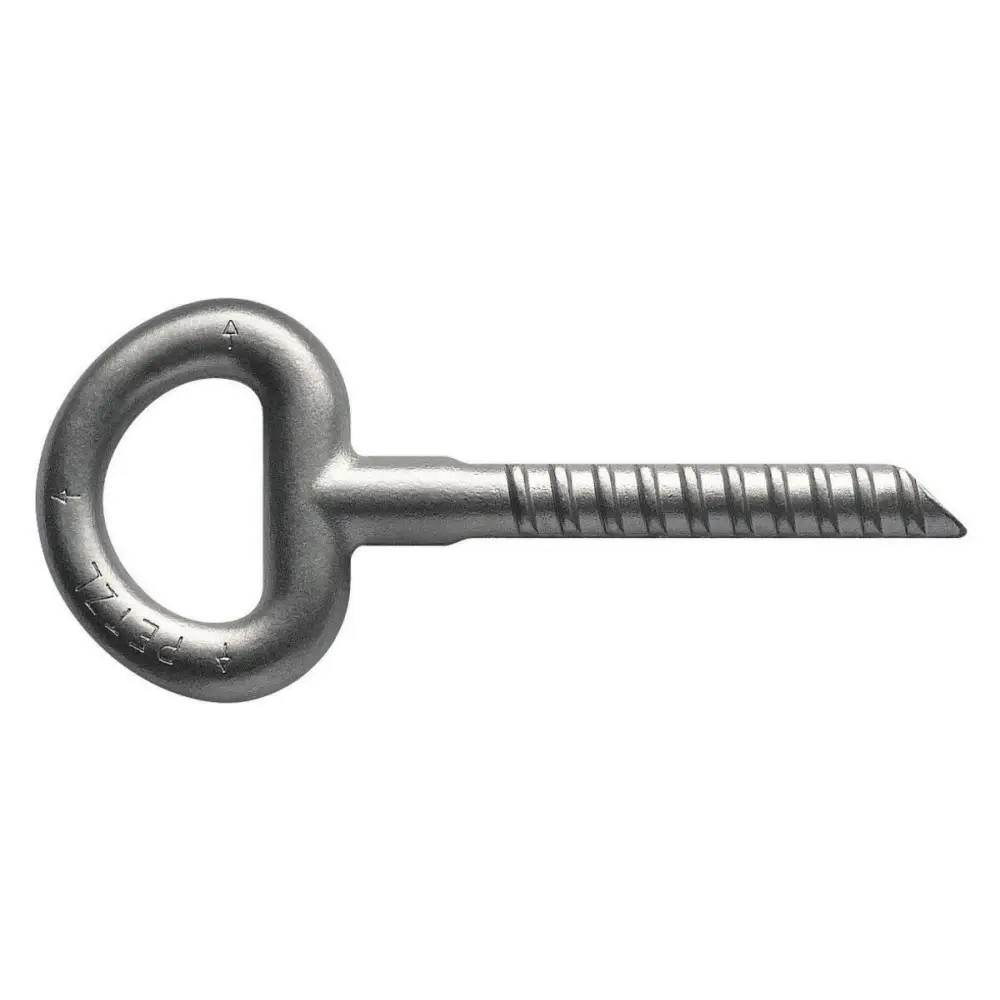

Petzl BatInox Bolt Anchor
A forged stainless steel glue in 14mm bolt for situations where the anchor needs to remain permanent.

Size

  • 14 x 100 mm
Specifications
  • Material(s): forged stainless steel
  • Certification(s): EN 959
  • SKUs- G102AA00
  • Diameter - 14 mm
  • Weight - 250 g
  • Length - 10 cm
  • Drilling Depth - 10-10,5 cm
  • Drilling diameter - 16 mm
  • Type of installation - G103AA00 glue (or other glues approved by Petzl)
  • Suggested drying time - 40 min -> 10 h
  • Resistance to cutting on concrete 50 MPa - 25 kN
Pull-out strength in concrete 50 MPa - 15 kN
    • Granite, gneiss > 80 MPa: preliminary testing recommended Hard limestone > 80 MPa: preliminary testing recommended
    • Limestone and medium sandstone 80 MPa to 45 MPa: preliminary testing recommended
    • Soft rock (soft sandstone, limestone) lower than 45 MPa: preliminary testing required
    • Very high quality concrete (work of art) > 50 MPa: preliminary testing recommended
    • Medium quality concrete between 25 and 50 MPa: preliminary testing suggested
    • Times are given for P41 glue (times may vary depending on the glue used and on the external environment)
    • Guarantee 3 years
